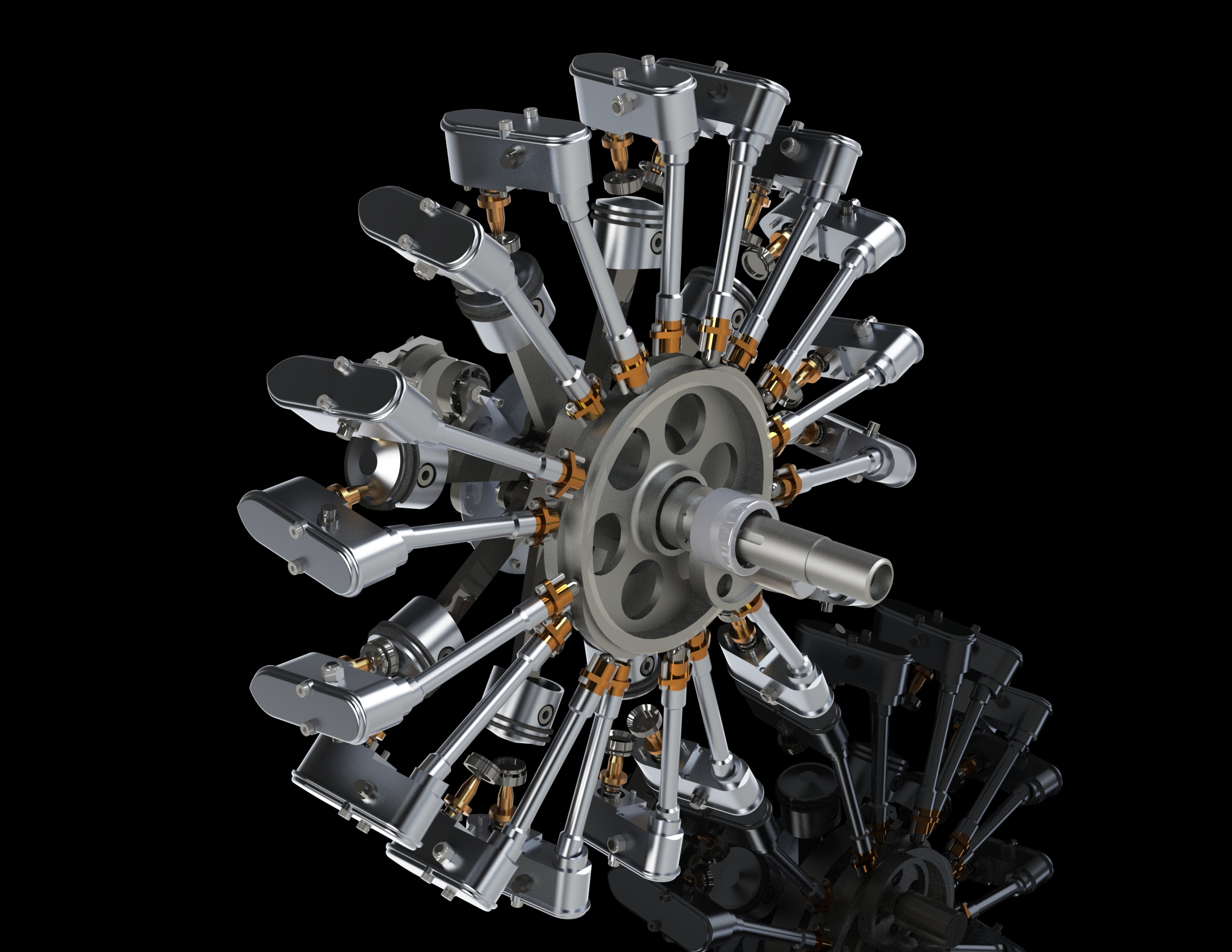

J5 Whirlwind Radial Engine

This page highlights my SolidWorks Design class final project: modeling the J5 Whirlwind Radial Engine. We started with an old drawing package (drafted circa 1930s) and...

1. Modeled every single part using SolidWorks

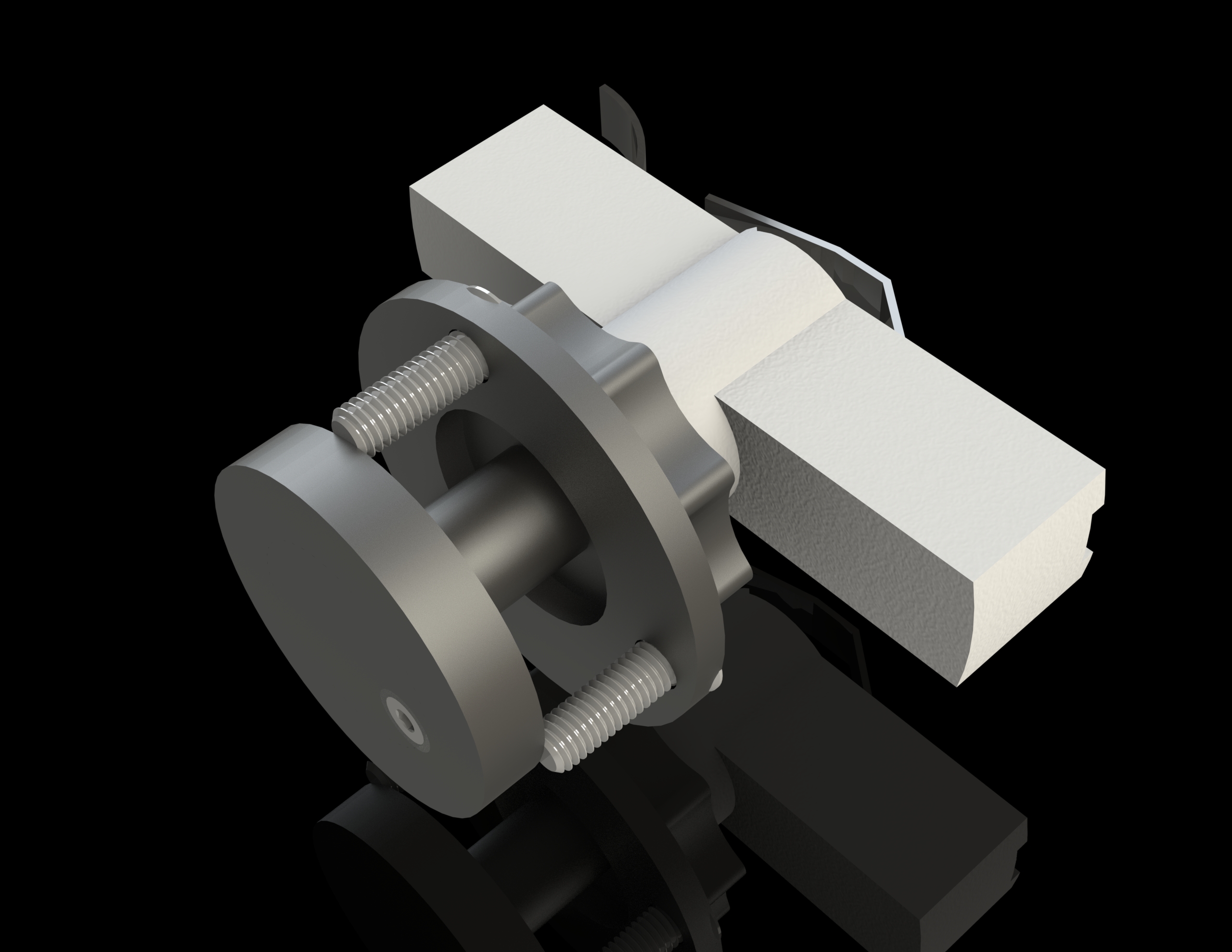

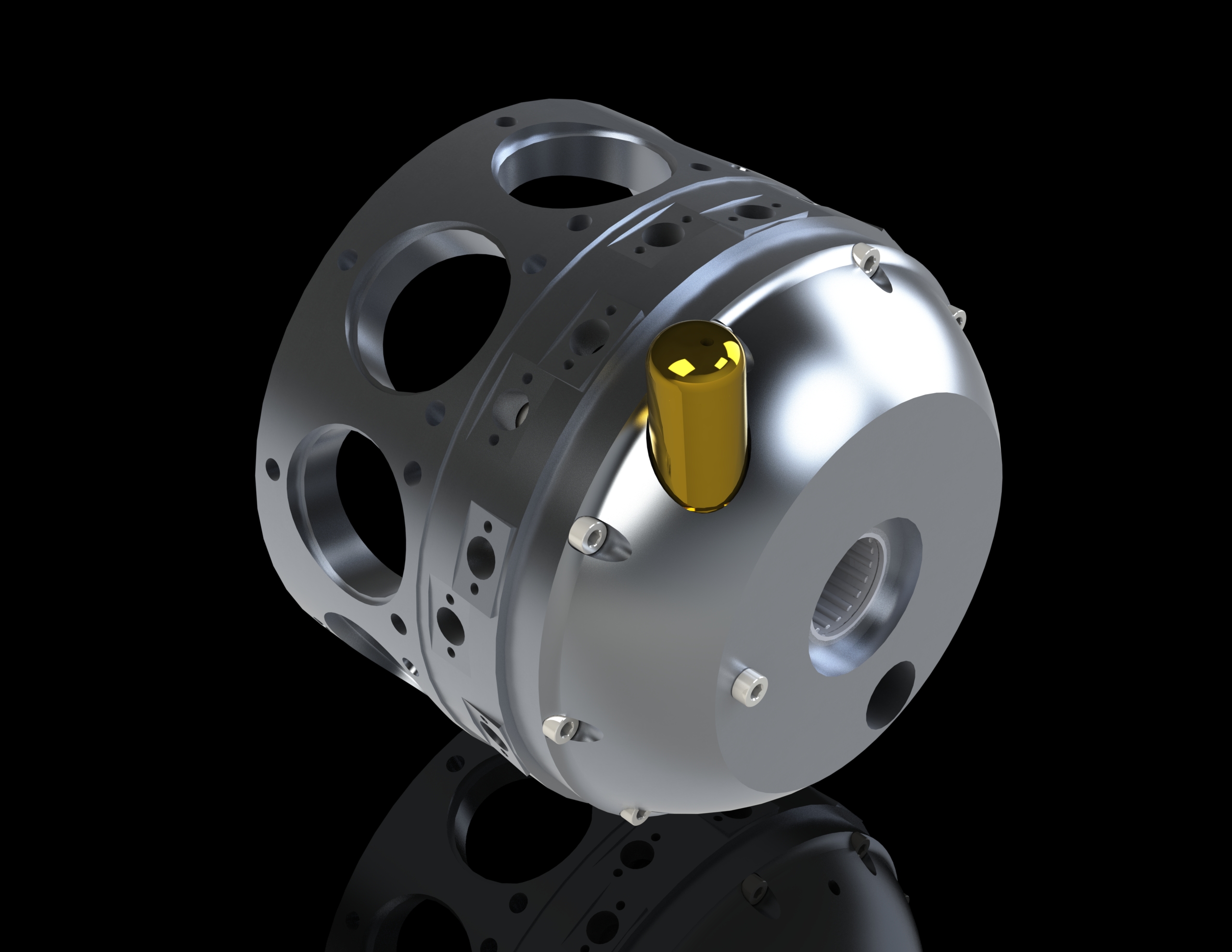

2. Created subassembly's complete with dynamic motion mates
3. Assembled all subassemblies into a master assembly model
4. Created a final drawing package of each part, subassembly, and full assembly
5. Created animations and renderings of our final result

See the images/videos below to see what we did!
